Continuous Band Sealing Machine – Siri FR

Mesin ‘continuous sealer’ untuk pelbagai jenis beg plastik/laminated – pantas, konsisten & kemasan profesional.

Penerangan Produk

Siri FR-770 merangkumi pilihan mendatar, menegak, stainless, beroda & versi kaunter.
Turut tersedia model khas seperti FR-770K (tali sawat lebar), FRD-1000 (ink wheel coding),
XK-1100V (heavy load) dan FRK-500 (auto table sealer).

Kelebihan (USP)

✓Kelajuan tinggi – sehingga 0–30 m/min (FR-770).

✓Serbaguna – mendatar/menegak, pilihan stainless & roda.

✓Marking – pilihan cetak steel print atau ink wheel.

✓Julat suhu luas – kawalan sehingga 0–400°C (model tertentu).

✓Seal kemas – lebar 6–12 mm, tebal sehingga ≤0.8 mm.

✓Heavy duty – XK-1100V sokong beban hingga 20 kg.

Spesifikasi – FR-770 (Family)

Model	Voltan	Kelajuan Seal	Kuasa Pemanas	Kuasa Motor	Beban	Lebar Seal	Kaedah Cetak	Julat Suhu	Ketebalan Seal	Dimensi	Berat
FR-770	220V 50Hz	0–30 m/min	600W	100W	≤5 kg	6–12 mm	Steel print	0–400°C	≤0.8 mm	88×43×36 cm	20 kg
FR-770 (Counter)	220V 50Hz	0–30 m/min	600W	100W	≤5 kg	6–12 mm	Steel print	0–400°C	≤0.8 mm	88×43×36 cm	20 kg

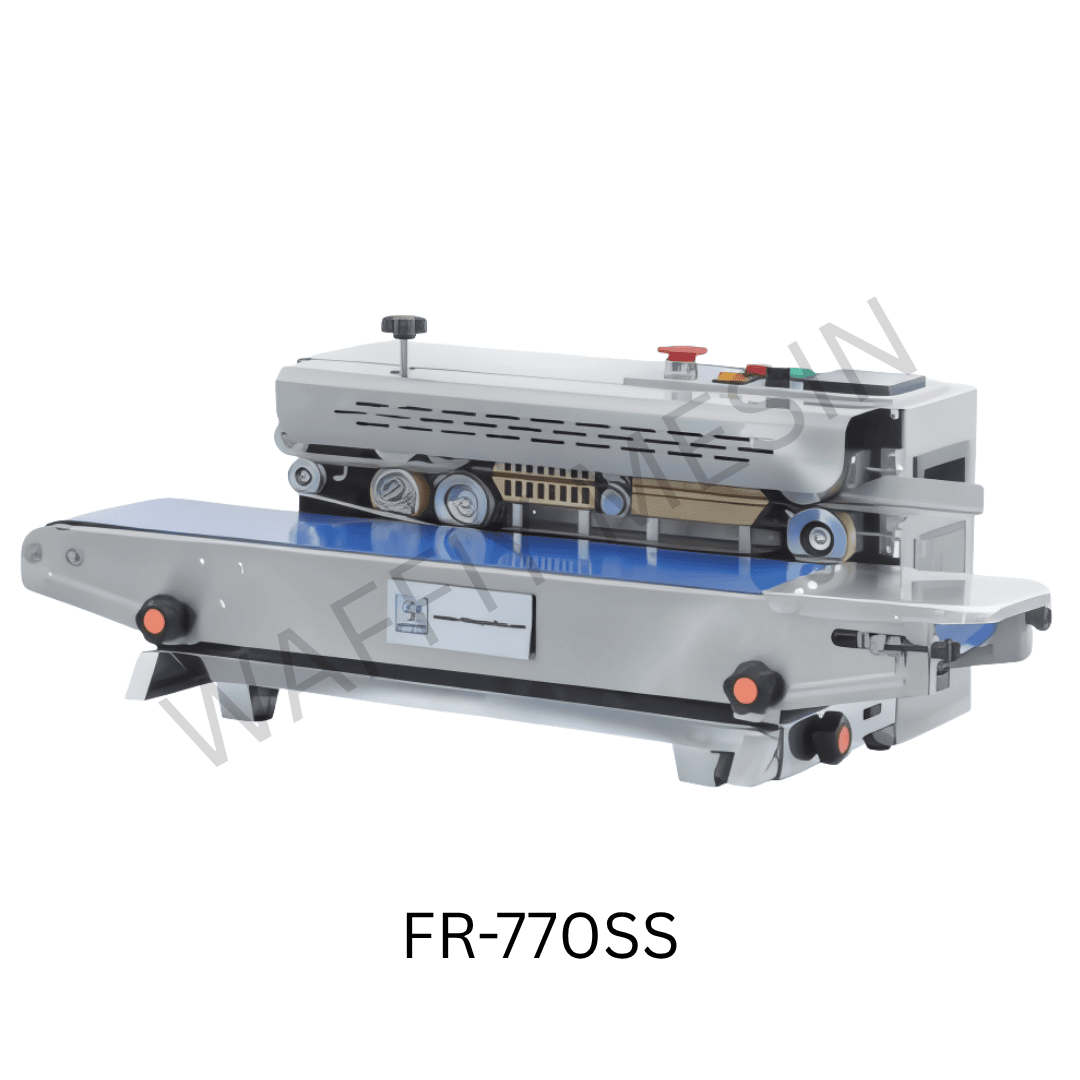

FR-770SS	220V 50Hz	0–30 m/min	600W	100W	≤5 kg	6–12 mm	Steel print	0–400°C	≤0.8 mm	88×43×36 cm	21 kg

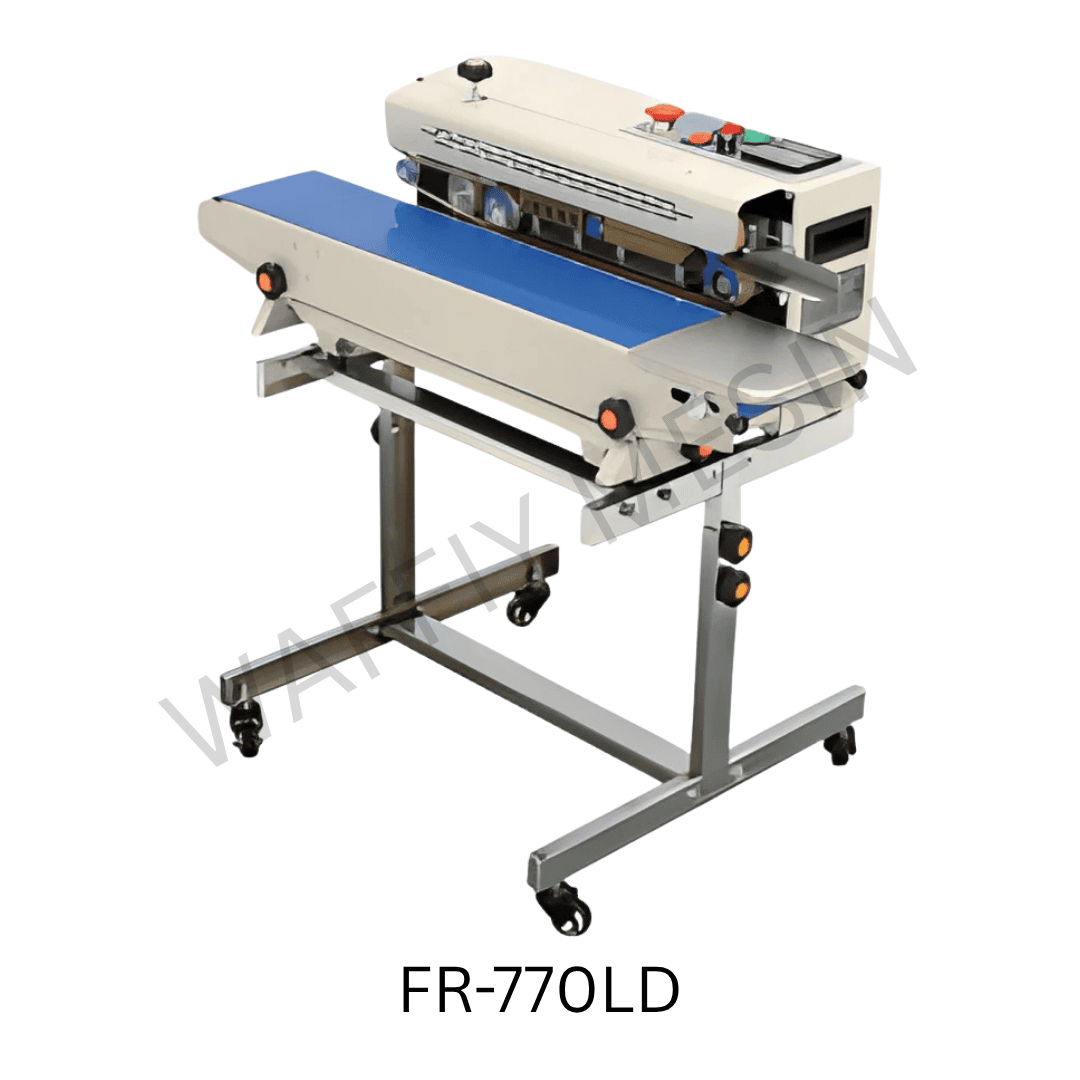

FR-770LD (Beroda)	220V 50Hz	0–30 m/min	600W	100W	≤5 kg	6–12 mm	Steel print	0–400°C	≤0.8 mm	89×55×102 cm	38 kg

Model Khas & Industri

Model	Voltan	Kuasa	Beban	Lebar Seal	Kaedah Cetak	Julat Suhu	Dimensi	Berat

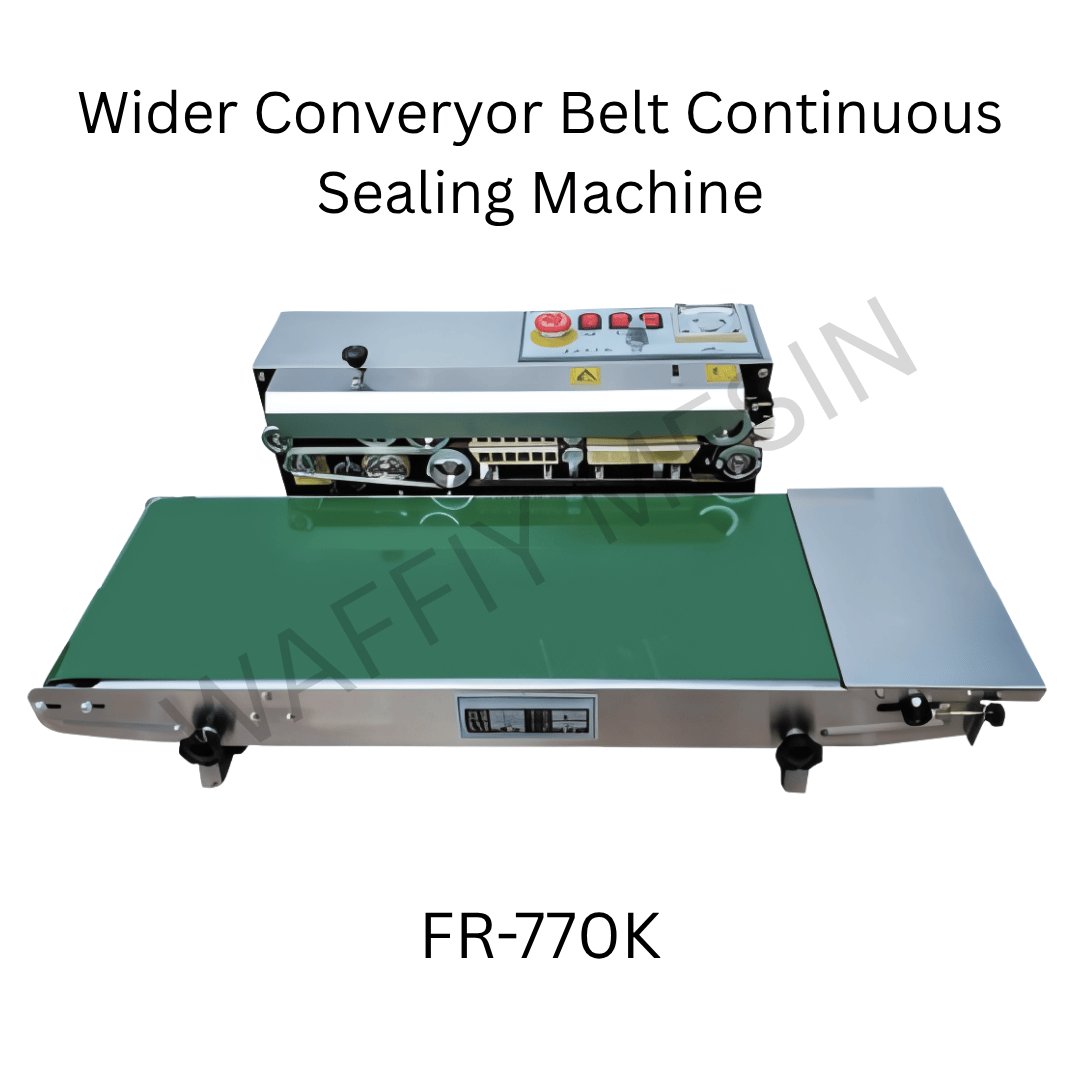

FR-770K (Tali Sawat Lebar)	220V	750W	≤5 kg	6–12 mm	Steel print	0–400°C	–	–

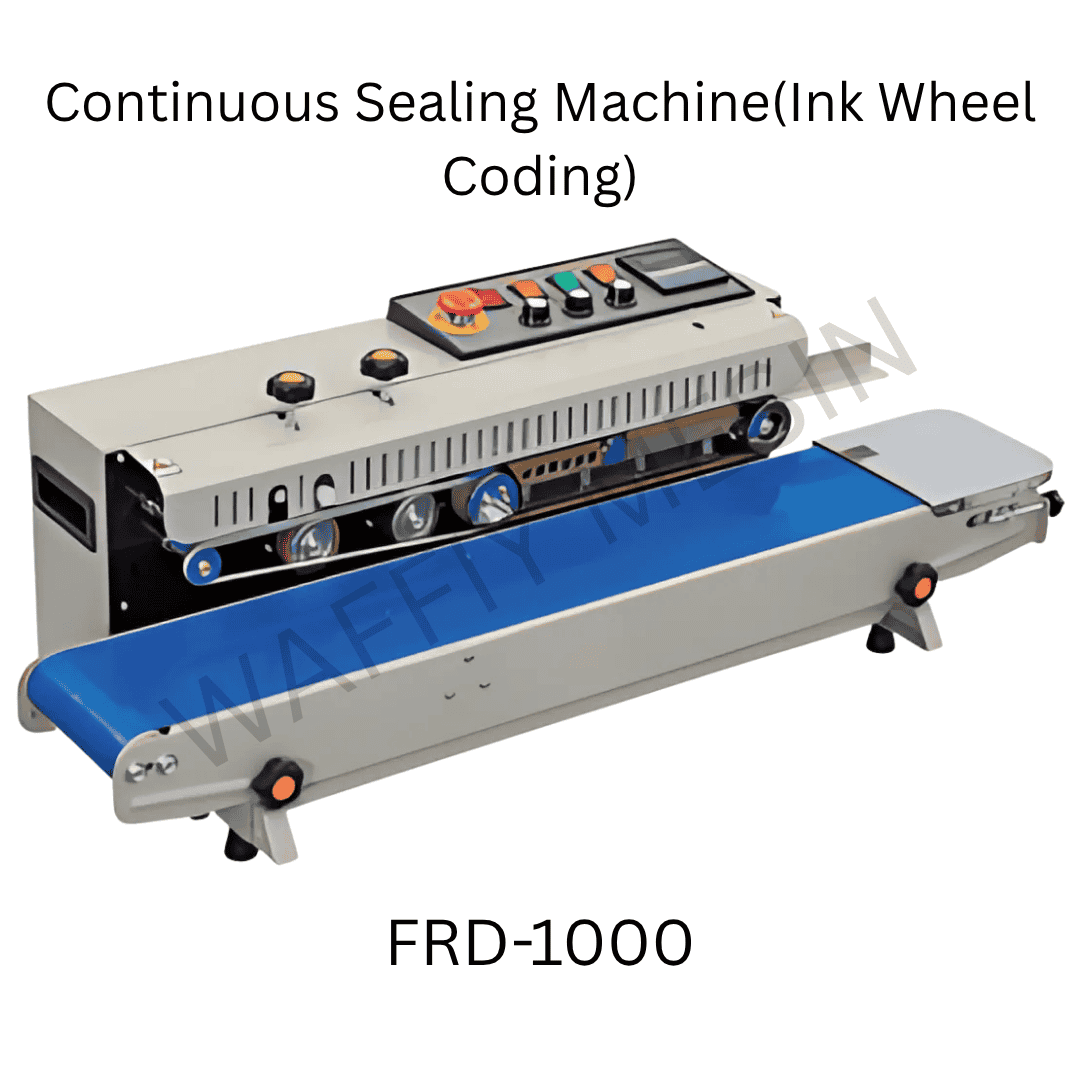

FRD-1000 (Ink Wheel)	220V	850W	≤5 kg	6–12 mm	Ink wheel	0–300°C	–	–

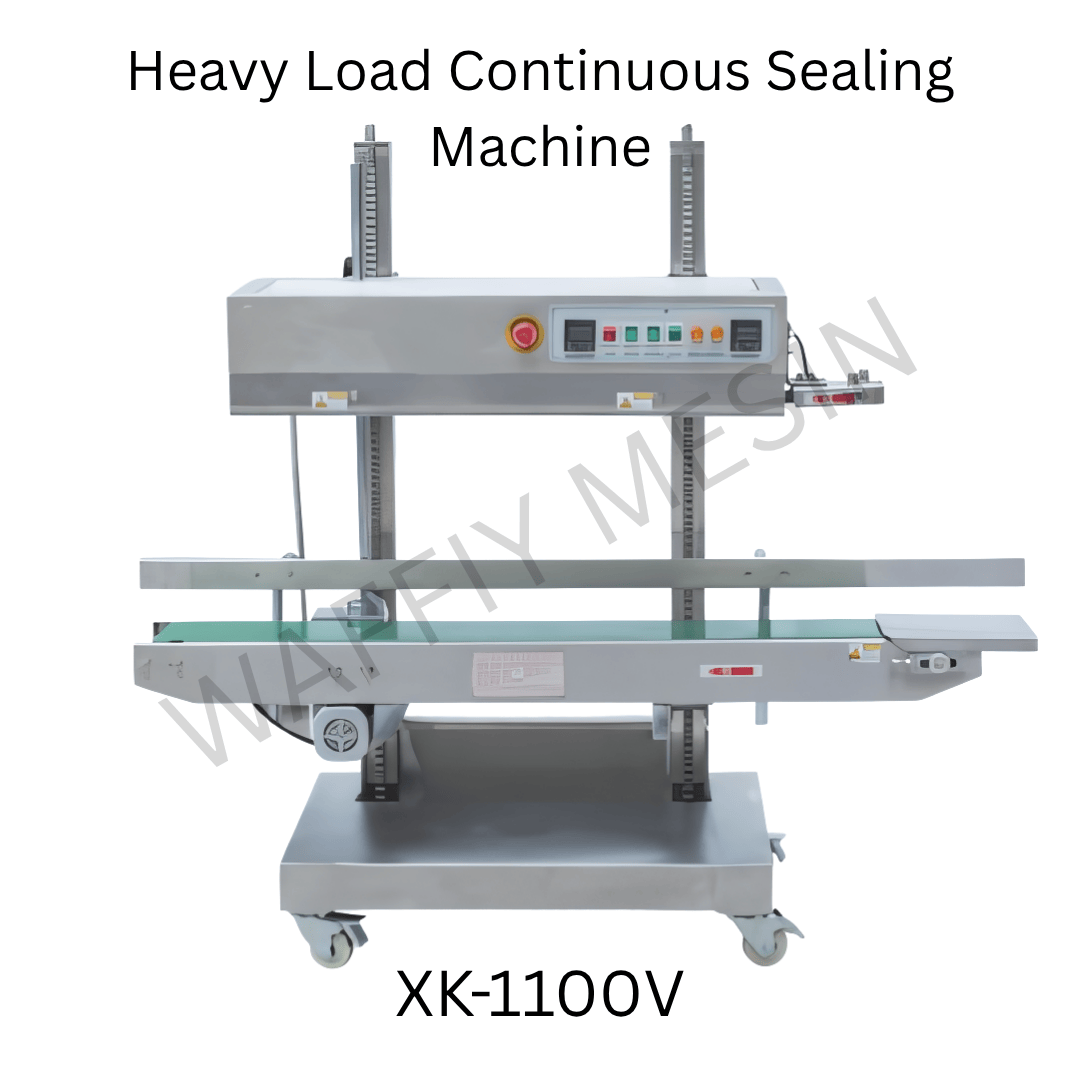

XK-1100V (Heavy Load)	220V	1200W	≤20 kg	10 mm	Ink wheel	0–300°C	157×68×157 cm	149 kg

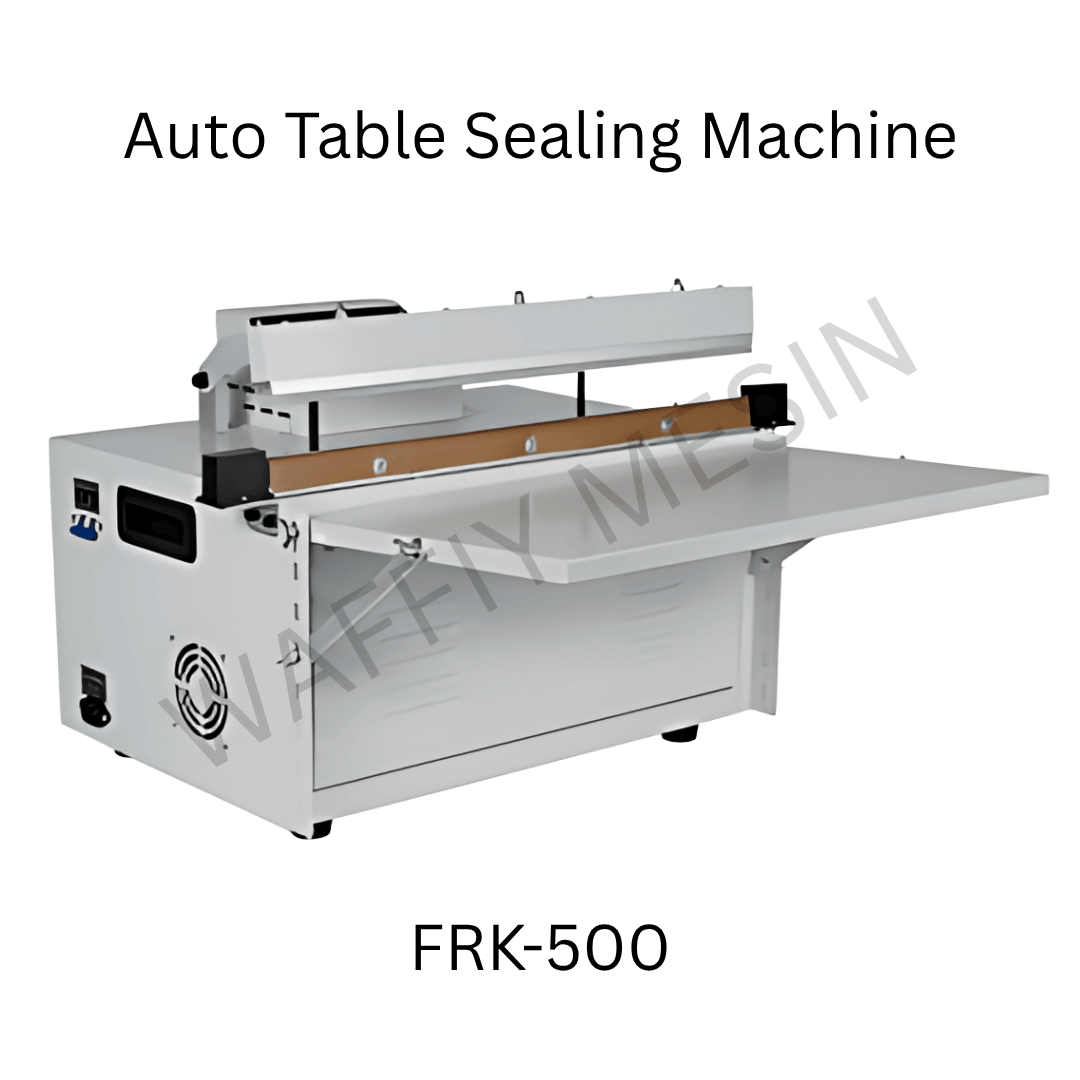

FRK-500 (Auto Table)	220V	1500W	–	500×10 mm	–	–	–	–
